AMR + Material Handling Modules.
Robocrafter Series RT (powered roller top) and custom lift modules for safe, autonomous indoor material flow with precision docking and rapid charging.
Robocrafter Series RT
Autonomous Mobile Robot (AMR) with powered roller conveyor top, designed for intralogistics and production material transport.
Robocrafter Series RT
Overview
| Product name | Robocrafter Series RT |
| Type | Autonomous Mobile Robot (AMR) with powered roller conveyor top |
| Primary use | Indoor intralogistics, material supply for production lines, process linkage transport |
| Navigation | LiDAR SLAM navigation |
| Drive | Double steering wheel drive (omnidirectional) |
General parameters
| Dimensions (L × W × H) | 2694 × 1932 × 520.7 mm (with bumper strip) |
| Weight | 980 kg (±5 kg, incl. battery pack) |
| Maximum payload | 1000 kg |
| Connectivity | Ethernet / Wi-Fi (802.11 a/b/g/n/ac) |
| Operating environment | Temperature: 0–50 ℃ Humidity: 10–90% (non-condensing) Protection rating: IP54 (indoor use recommended) |
Performance parameters
| Travel speed | ≤ 1.2 m/s (adjustable) |
| Navigation accuracy | Positioning: ±10 mm Angular: ±1° |
| Passability | Slope ≤ 5%, step ≤ 5 mm, gap ≤ 30 mm |
Power & battery
| Battery type | Lithium Iron Phosphate |
| Capacity | 48V / 60Ah |
| Endurance | Up to 10 hours continuous operation |
| Charging time (10–80%) | ≤ 1.5 hours |
| Charging modes | Manual / Automatic |
| Battery life | ~2000 cycles |
Safety & protection
| LiDAR SLAM units | 2 units |
| Emergency stop | Emergency stop button |
| Audio alerts | Speaker |
| Status signaling | Ambient light indicator |
| Collision protection | Bumper strip |
Functions
- Map editing
- Model editing
- Positioning & navigation
- Differential motion model
- API interface
- Wi-Fi roaming
- Automatic charging
- QR code positioning
Variant – Roller Transplanting Robot
Variant configuration listed with the same navigation and positioning performance targets.
Variant concept
Variant summary
| Variant | Roller Transplanting Robot |
| Rated load | 1000 kg (2200 pound) |
| Navigation | LiDAR SLAM |
| Position accuracy | ±10 mm |
| Angle precision | ±1° |
| Endurance | 10 hours |
| Charging time | ≤ 1.5 h |
| Communication | Wi-Fi / 5G |
| Lifting height | N/A |
Notes & usage conditions
- Designed for indoor logistics; not suitable for outdoor use.
- Best performance on smooth, clean, level flooring.
- Approach minor slopes, steps, and gaps perpendicularly.
- Accuracy applies at target points; not guaranteed along the full path.
- Supports minimum site spacing of 1 cm for precise operations.
Custom Scissor Lift with Powered Roller Top
AACSL-PR-3002, a heavy-duty lift module to elevate and transfer loads safely and efficiently.
AACSL-PR-3002

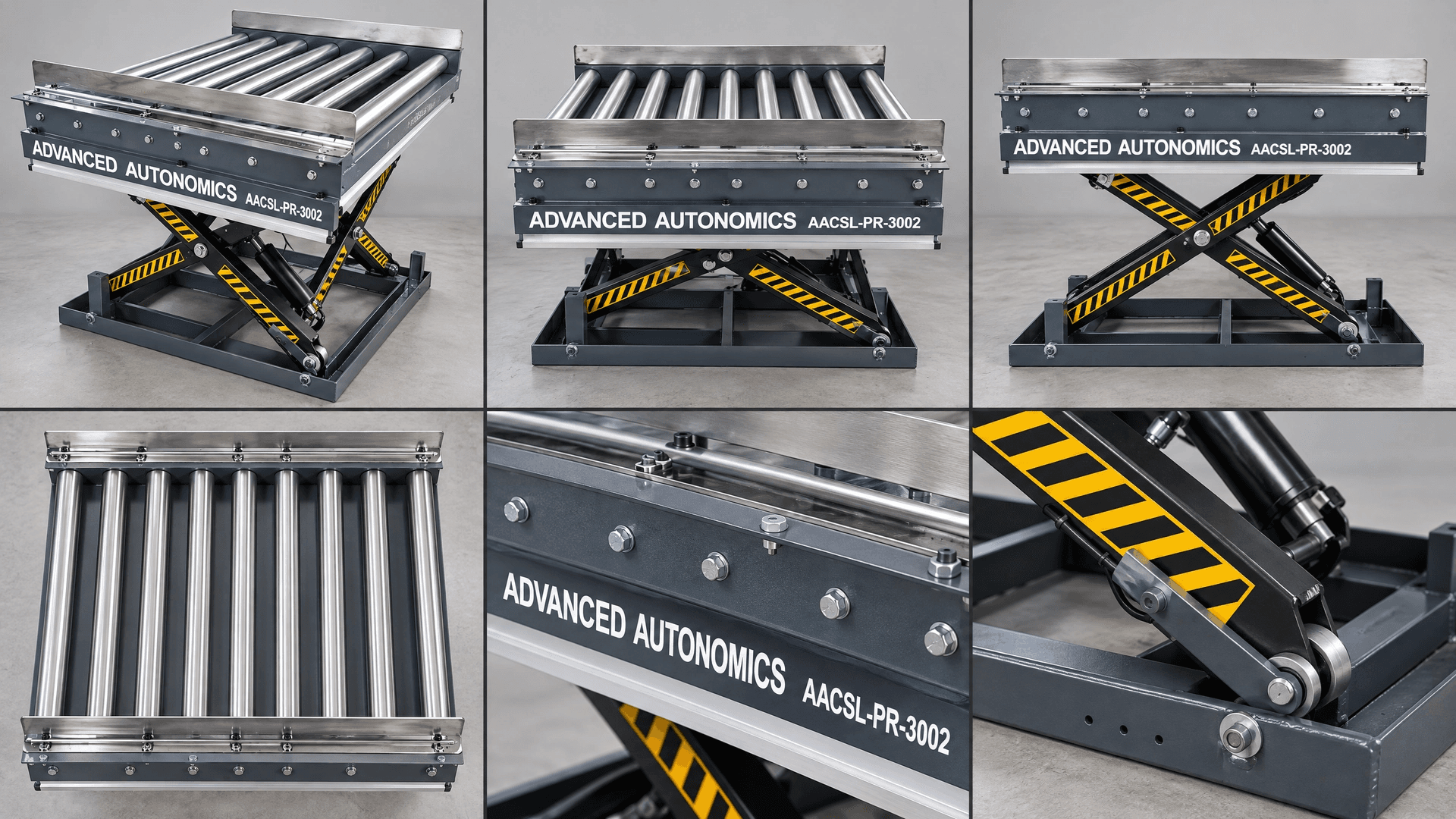

Detail views
Key advantages
- Handles up to 1,000 kg for demanding industrial transport tasks.
- Powered roller top supports smooth transfers and efficient material flow.
- Safety-focused build with fencing, anti-pinch design, and overload protection.
- Schneider Electric controls with robust hydraulic components for long-term operation.
- Rebranded as Advanced Autonomics in white lettering; finished in RAL 260 40 05 Swedish Grey.
- UL Certified; 24-month warranty.
Technical data
| Model | AACSL-PR-3002 |
| Capacity | 1000 kg |
| Platform size | 1258 × 1270 mm |
| Height range | 300–515 mm |
| Fence | Stainless steel fence, 10 cm height, 5 mm thickness |
| Voltage | 480V, 60Hz, 3-phase |
| Cylinders | 2 (60 mm ID) |
| Lift motor | AC 1.1kW / 480V |
| Roller motor | AC 0.75kW / 480V |
| Pump station | Built-in |
| Control system | Schneider Electric |
| Other features | Explosion-proof throttle valve, anti-pinch scissor lifts, self-lubricating bearings, overload protection |
| Color | RAL 260 40 05 Swedish Grey |
| Branding | Trade name “Advanced Autonomics” in white |
| Certification | UL Certified |
| Warranty | 24 months |
